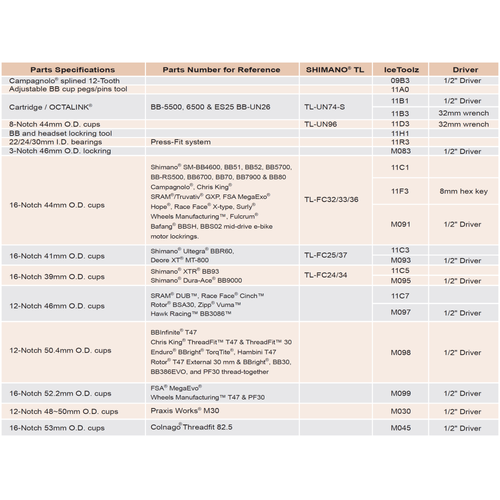

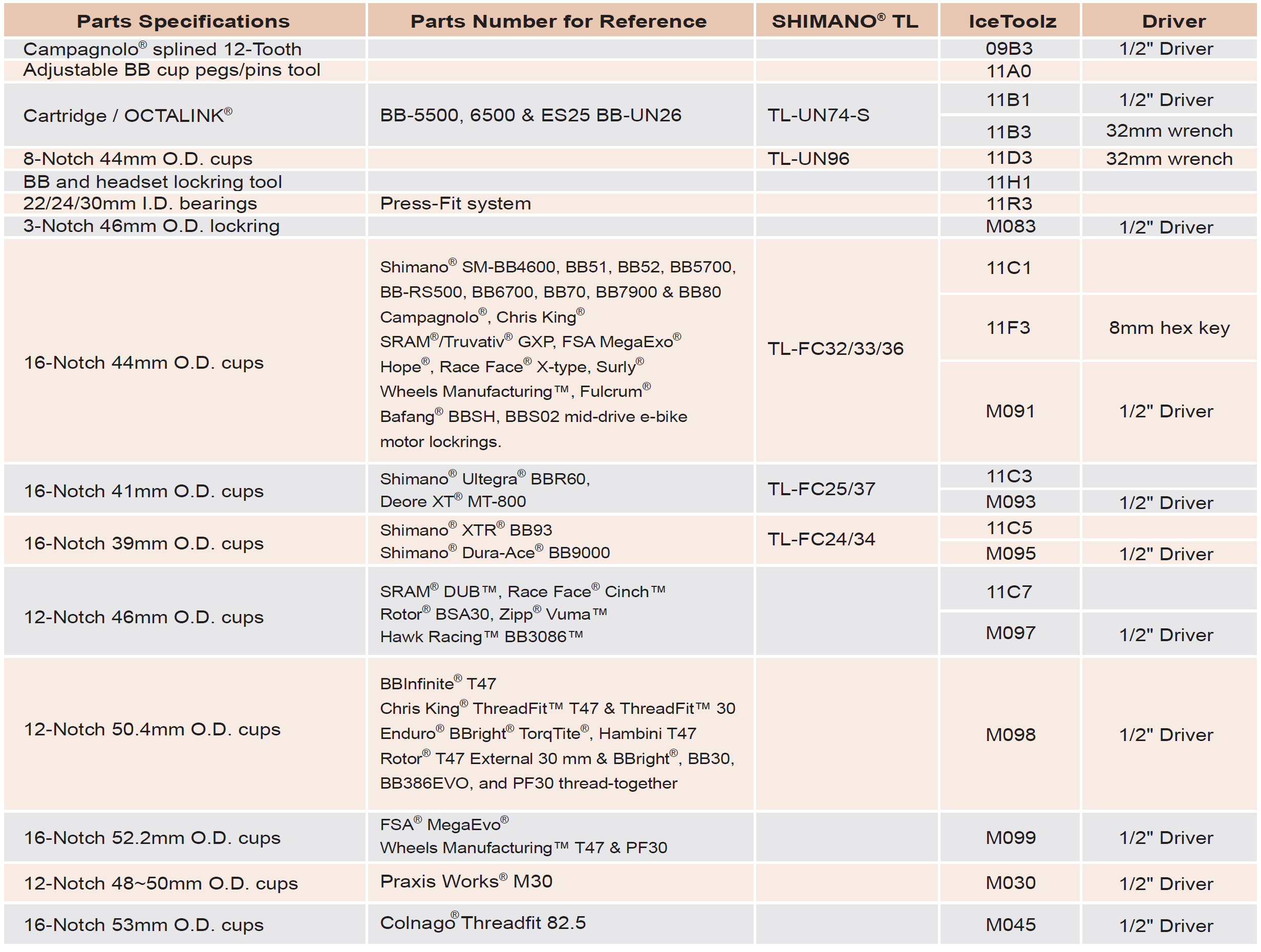

BOTTOM BRACKET TOOL LIST
Code BBLIST
-M030
for 12-Notch 48~50mm O.D. Cups
-M045
for 16-Notch 53mm O.D. Cups
-M091
for 16-Notch 44mm O.D. cups
-M093
for 16-Notch 41mm O.D. Cups
-M095
for 16-Notch 39mm O.D. Cups
-M097
for 12-Notch 46mm O.D. Cups
-M098
for 12-Notch 50.4mm O.D. Cups
-M099
for 16-Notch 52.2mm O.D. Cups
-11B1/11B3
for fittings with 20 splines and a diameter of 32 mm
-11D3
for 8-Notch 44mm O.D. cups
-11R3
for pressfit system 22/ 24/ 30mm I.D. bearings
-11C1/ 11C3/ 11C5/ 11C7
11C1: for 16-Notch 44mm O.D. Cups
11C3: for 16-Notch 39mm O.D. Cups
11C5: for 16-Notch 41mm O.D. Cups
11C7: for 12-Notch 46mm O.D. Cups
